MetaLonDA: a flexible R package for identifying time intervals of differentially abundant features in metagenomic longitudinal studies
Microbiome volume 6, Article number: 32 (2018)
Abstract
Background
Microbial longitudinal studies are powerful experimental designs utilized to classify diseases, determine prognosis, and analyze microbial systems dynamics. In longitudinal studies, only identifying differential features between two phenotypes does not provide sufficient information to determine whether a change in the relative abundance is shortterm or continuous. Furthermore, sample collection in longitudinal studies suffers from all forms of variability such as a different number of subjects per phenotypic group, a different number of samples per subject, and samples not collected at consistent time points. These inconsistencies are common in studies that collect samples from human subjects.
Results
We present MetaLonDA, an R package that is capable of identifying significant time intervals of differentially abundant microbial features. MetaLonDA is flexible such that it can perform differential abundance tests despite inconsistencies associated with sample collection. Extensive experiments on simulated datasets quantitatively demonstrate the effectiveness of MetaLonDA with significant improvement over alternative methods. We applied MetaLonDA to the DIABIMMUNE cohort (https://pubs.broadinstitute.org/diabimmune) substantiating significant early lifetime intervals of exposure to Bacteroides and Bifidobacterium in Finnish and Russian infants. Additionally, we established significant time intervals during which novel differentially relative abundant microbial genera may contribute to aberrant immunogenicity and development of autoimmune disease.
Conclusion
MetaLonDA is computationally efficient and can be run on desktop machines. The identified differentially abundant features and their time intervals have the potential to distinguish microbial biomarkers that may be used for microbial reconstitution through bacteriotherapy, probiotics, or antibiotics. Moreover, MetaLonDA can be applied to any longitudinal count data such as metagenomic sequencing, 16S rRNA gene sequencing, or RNAseq. MetaLonDA is publicly available on CRAN (https://CRAN.Rproject.org/package=MetaLonDA).
Background
Longitudinal studies of the microbiome have gained tremendous popularity during the past few years due to the ability to detect trends of microbiome changes over time and relate these changes to disease progression in different parts of the body, such as the gut, kidney, skin, or lung [1–6]. In addition, there has been a drastic reduction in sequencing cost that has made longitudinal studies more affordable on a large scale.
Two major types of analysis can be performed in longitudinal microbial studies that snapshot studies cannot provide: (a) analysis over time to capture the dynamics of microbial interactions [7, 8] and (b) association studies that correlate change of microbial features, such as taxonomies, genes, or average relative abundance of pathway components, with a phenotypic group. The latter analysis is usually challenged by variability in longitudinal sample collections, including inconsistencies in the number of subjects per phenotype, number of samples per subject, and sample collection at inconsistent time points. These inconsistencies increase with the level of difficulty with which samples are obtained from the subjects. For example, in humans, the variability decreases in samples collected noninvasively (e.g., stool and urine samples) but increases in the invasive procedures (e.g., bronchoalveolar lavage (BAL) samples which are extracted from the lung by bronchoscopy).
One solution to address this variability is to bin samples into a certain number of windows between the start and end times of the study course by selecting the nearest sample in time for each bin [2], then, compare the microbial feature’s relative abundance or diversity indices [9–11] between any pair of time points to characterize any pairwise changes. The limitation of this approach is that it deals with the longitudinal data points as a collection of static snapshots and ignores temporal dependencies. Furthermore, if more than one sample is taken in the same time window, it may result in either retaining only one sample and excluding the others or taking the average of the measured feature’s values, which may lead to mischaracterizing the exact microbial behavior.
Another strategy is to identify time intervals of differentially abundant microbial features. To date, two methods have been proposed: the first is MetaSplines [12], and the second is MetaDprof [13]. MetaSplines and MetaDprof are both based on the Gaussian smoothing spline ANOVA (SSANOVA) approach [14–16], where the Gaussian distribution is used to model the number of reads mapped to each microbial feature. MetaSplines has a higher sensitivity of detecting time intervals of differentially abundant features than MetaDprof, but MetaDprof has higher specificity [13]. MetaDprof has a major drawback, namely, its implementation assumes consistency in longitudinal microbial samples, such that it is only able to perform the analysis on an equivalent number of subjects per phenotypic group, the same number of samples from each subject, and the same elapsed time between adjacent time points. However, these conditions are rarely fulfilled in human microbiome longitudinal studies.
In this paper, we introduce MetaLonDA (Metagenomic Longitudinal Differential Abundance method), an R package that performs longitudinal differential abundance tests in a strategy that can identify time intervals of microbial features that are significantly over/under abundant in a phenotypic group. MetaLonDA is flexible such that it can handle all types of inconsistencies in microbial sample collections. The identified differentially abundant features and their time intervals have the potential to distinguish microbial biomarkers that may be used for microbial reconstitution therapy through bacteriotherapy, probiotics, or antibiotics and may also suggest timing and duration of the therapy.
Implementation
The main components of the MetaLonDA framework are shown in Fig. 1.
Input
Metagenomic reads are processed for each sample to construct taxonomic and/or functional profiles [17–20]. The taxonomic profiles, functional profiles, or both for all samples from different subjects are then integrated into one count table C with a dimension of m × n, where m denotes the number of microbial features and n denotes the number of metagenomic samples. C(i,j) represents the number of reads from sample j that mapped to microbial feature i. The count table C is the main input to MetaLonDA. Additionally, three vectors each of length n are needed for MetaLonDA to perform the analysis: (a) time of sample collection vector T, (b) phenotypic group vector G, and (c) subject ID vector I. As previously highlighted, MetaLonDA supports unequal numbers of samples between subjects, unequal numbers of subjects between phenotypic groups, and uneven elapsed time between time points.
Normalization
Since metagenomic samples may have different sequencing depths, the aggregated metagenomic counts need to be normalized among samples [21, 22]. MetaLonDA incorporates three different normalization methods into its framework: (a) cumulative sum scaling [12], (b) medianofratios scaling factor [23], and (c) trimmed mean of M values [24]. If the count table is already normalized, the normalization step should be skipped in MetaLonDA. As a preprocessing step for MetaLonDA and based on a userspecified threshold, relatively low abundant features are removed from the metagenomic count table. In our model, we assume that the normalized counts of each feature follow a negative binomial (NB) distribution, which is different from modeling the original counts as NB distributed after incorporating a size factor into the mean as in DESeq2 [23].
MetaLonDA core algorithm
The MetaLonDA algorithm relies on two modeling components: the NB distribution for modeling the mapped read counts for each feature and the semiparametric SSANOVA technique for modeling longitudinal profiles associated with each phenotype [25]. By fixing a feature f=1,…,F, the data under consideration are the random variables Y_{ tki } or their observations y_{ tki } of mapped reads of the i^{th} subject of phenotype k to the feature f at time point t, where t=1,…,T, k=1,2, and subject i=1,…,n_{ k }. The random variable Y_{ tki } is assumed to follow NB distribution as shown in Eq. (1), with integer α>0 and success probability p(t,k)∈(0,1).
Assuming Y_{ tki }’s are independent, the loglikelihood given timecourse metagenomic count profiles \(\phantom {\dot {i}\!}{y} = \{y_{tki}\}_{t = 1,\ldots,T; k = 1,2; i = 1, \ldots, n_{k}}\) is calculated as in Eq. (2)
We seek the estimation of model parameters α and p(t,k) by maximizing Eq. (2) (Additional file 1). To model the time and phenotypic effect, we use a general linear model with a logit link as in Eq. (3)
Following [16], in order to control the smoothness of the function η, a roughness penalty J(η) is added to the minus loglikelihood together with the smoothing parameter λ>0 for the tradeoff between the goodness of fit and the smoothness of the spline curve as in Eq. (4), where the smoothing parameter λ is determined by crossvalidation procedure.
The solution to the optimization problem in Eq. (4) leads to a smoothing spline that fits the reads from samples across multiple time points. After fitting longitudinal profiles in each phenotypic group with a NB smoothing spline, the area ratio AR_{t,t+1} between the two modeled curves per unit time interval is calculated as in Eq. (5), where \(A_{t,t+1}^{k_{1}}\) and \(A_{t,t+1}^{k_{2}}\) denote the area under the spline curve from time t to time t + 1 for group 1 and group 2, respectively, t=1,…,T−1.
The pvalue of each time interval is then calculated based on the AR_{t,t+1} empirical distribution which is constructed by a permutation test. The significant time intervals are identified as those with pvalue < threshold (default = 0.05) after multiple testing corrections using BenjaminiHochberg (BH) [26]. The complete mathematical derivation of the MetaLonDA algorithm is illustrated in details in Additional file 1.
Output format and visualization
MetaLonDA outputs a table that includes significant features, start and end points of the corresponding significant intervals, the adjusted pvalue of each significant time interval, and the phenotypic group in which the corresponding feature is more abundant. In addition to the output table, MetaLonDA produces two types of visualizations: (a) a figure showing the fitted splines of each group and the associated time interval for each feature that has at least one significant time interval and (b) a figure visualizing the identified time intervals of the differentially abundant features (as shown in Fig. 6).
Results and discussion
Evaluation of the negative binomial assumption
One major assumption of MetaLonDA is that the number of metagenomic reads mapped to microbial features follows a NB distribution. To evaluate this assumption, we extracted the count data from Caporaso et al. [1]. In this dataset, microbial samples were taken on a daily basis from a man and a woman over a period of 15 and 6 months, respectively, from four different body sites. The obtained read counts were normalized using the medianofratios scaling factor method [23]. After filtering out the relatively rare operational taxonomic units (OTUs) with fewer than five reads, a total of 750 OTUs were selected from 1967 samples. The QQ plot in Fig. 2 exemplifies the suitability of modeling read counts of Klebsiella species using different parametric distributions, namely, NB, Poisson, zeroinflated Poisson (ZIP), and lognormal distributions. The theoretical quantiles of each parametric distribution are calculated from random numbers generated from each parametric distribution with parameters estimated from each OTU read count (parameter fitting methods for each distribution are discussed in Additional file 1). The pvalue on the top of each subfigure of Fig. 2 represents the BHadjusted pvalue of the twosample KolmogorovSmirnov (KS) test [27], where a higher pvalue indicates that the two samples are derived from the same population distribution and smaller pvalue indicates that the two samples are drawn from different population distributions. In the case of Klebsiella, only the NB distribution is considered suitable (pvalue =0.28).
To evaluate all other features, we applied the KS test to the read counts of each of the 750 OTUs and the sampled numbers from the corresponding parametric statistical distribution that had the same parameters as estimated from the read counts. Table 1 summarizes the number of features that do not show significant divergence (pvalue > 0.05 after BH multiple testing corrections) with NB, ZIP, Poisson, lognormal, exponential, halfnormal, and normal distributions. Out of the 750 features, 96% were modeled appropriately using NB distribution. In comparison, ZIP and Poisson were appropriate for 41% and 26% of the OTUs, respectively, whereas the rest of the parametric distributions employed in this analysis barely fit. This indicates the appropriate use of NB as a parametric distribution model for MetaLonDA when compared to other standard parametric distributions. Furthermore, this finding is consistent with previous studies that show that crosssectional differential abundance methods that use a NB distribution to model microbial features outperform methods that rely on other distributions, especially when the number of samples is small [28].
Performance evaluation based on simulated datasets
In order to benchmark MetaLonDA’s performance, we performed a comprehensive simulation study. Longitudinal features (n = 1000) were simulated from NB, Poisson, and ZIP distributions using the corcounts R package [29]. Although read counts of metagenomic features follow NB distribution as shown in Table 1, the purpose of simulating data from Poisson and ZIP was to evaluate the robustness of MetaLonDA when read counts fail to follow the NB distribution. These simulated features were categorized into two types: (a) 500 differentially abundant features between the two testing groups and (b) 500 features that were not differentially abundant between the two testing groups. In the case of the differentially abundant features (demonstrated in Fig. 3a), the mean μ(t) pattern is simulated to be differentially abundant in three regions: (a) at the start of the study course, (b) at the end of the study course, and (c) in the middle of the study course (Additional file 1). In the case of nondifferentially abundant features, the where denotes normal distribution and t = 0,…,20.
For features simulated from the NB distribution, we used a size factor equal to 40/μ(t). In the case of Poisson distribution, we used λ = μ(t), and in the case of zeroinflated Poisson distribution, we used p(y=0)=0.3 for the zeroinflation parameter. Our choice of the zeroinflation probability was based on the analysis of \(\hat {p}(y=0)\) when we fitted all features in the Caporaso et al., study [1] with the ZIP distribution (Table 1). The histogram in Additional file 2 shows that 75% of the \(\hat {p}(y\ =\ 0)\) is less than 0.3 (median of \(\hat {p}\) = 0.1). Therefore, our choice of 0.3 is to evaluate how MetaLonDA performs in this case of simulated zero inflation.
In order to mimic the correlation behavior between adjacent time points in longitudinal studies, the simulation of read counts of adjacent samples followed the firstorder autoregressive model [30] with a correlation coefficient ρ = 0.9. Datasets were simulated for 15 subjects with 20 time points each (T = 20). Additionally, to mimic inconsistencies in the number of subjects per group and number of samples per subject, we randomly chose 11 samples from 8 subjects from group A and 8 samples from 6 subjects from group B (Fig. 3a).
We proceeded to evaluate the performance of MetaLonDA in comparison to MetaSplines, MetaDprof, and LOWESS [31]. LOWESS is a nonparametric local regression model that is based on combining multiple regression models in a knearestneighborbased metamodel. In the context of this paper, LOWESS refers to using the LOWESS regression model to substitute the NB distribution in MetaLonDA’s framework. Each method was run for 1000 permutations to construct the AR empirical distribution. The pvalue threshold was set to 0.05 after multiple testing corrections using BH. The rest of the parameters were set to default. The assessment is based on the \(\text {sensitivity} = \frac {TP}{TP+FN}\) and \(\text {specificity} = \frac {TN}{TN+FP}\). In this context, TP represents the number of truly identified time intervals of differentially abundant features. TN represents the number of truly identified time intervals of nondifferentially abundant features, FP represents the falsely identified time intervals of nondifferentially abundant features, and FN represents the falsely identified time intervals of differentially abundant features.
Table 2 shows the performance evaluation based on consistent sampling, i.e., the ideal scenario which is rare. MetaLonDA has the most balanced prediction in terms of sensitivity and specificity followed by MetaDprof and MetaSplines.
Next, we benchmarked MetaLonDA using the inconsistent sampling scenario. In this experiment, MetaDprof was excluded since its package cannot handle the sampling inconsistencies. In the case of data simulated from NB distribution, Fig. 3c shows that MetaLonDA outperforms MetaSplines and LOWESS in sensitivity and specificity. On the other hand, in the case of data simulated from Poisson distribution, Fig. 3d demonstrates that LOWESS has a slightly better sensitivity than MetaLonDA (100 vs. 98%). But, the specificity of LOWESS and MetaSplines is very low when compared to MetaLonDA (50 vs. 95%). This is because LOWESS and MetaSplines overfit the data. Lastly for the case of the zeroinflated Poisson, Fig. 3e shows that MetaLonDA, MetaSplines, and LOWESS have a comparatively low level of sensitivity(∼ 50%), but MetaLonDA has higher specificity. The reason behind this low sensitivity is the high zero inflation probability we chose for ZIP, p(y = 0) = 0.3. To summarize, MetaLonDA always maintains a very high specificity, in contrast to LOWESS and MetaSplines.
The execution time of MetaLonDA, MetaDprof, and MetaSplines is comparable and depends on the number of permutations used. Analysis of the simulated dataset from a NB distribution with 1000 features took 104 min with MetaLonDA, 113 min with MetaDprof, and 99 min with MetaSplines. The analysis was conducted on a MAC machine with 2.5 GHz Intel Core i7 processor and 16 GB 1600 MHz RAM. For the same analysis, LOWESS was slightly faster (87 min) because it does not have the complex smoothing spline optimization Eq. (4) that needs to be solved numerically.
Performance evaluation on a biological dataset: hygiene hypothesis study
In order to assess the biological significance of the identified time intervals of differentially abundant features, we used a publicly available dataset from a longitudinal metagenomic study that investigates the hygiene hypothesis [3]. The study was part of the DIABIMMUNE project (https://pubs.broadinstitute.org/diabimmune). Stool samples were collected from 222 infants (74 from Russia, 74 from Finland, and 74 from Estonia) from birth to ∼ 3 years of age. In our analysis, we identified the time intervals with differentially abundant genera in Russian and Finnish infant guts. We focused on the 585 samples (304 from 70 Russian infants and 281 from 71 Finnish infants) that had been sequenced using metagenomic shotgun (MGS) sequencing. Figure 4 shows the distribution of time points of the stool samples collected from each group (Additional file 3 shows the distribution of time points per subject). Reads from the 585 sequenced samples were qualitycontrolled by filtering out lowquality reads, short reads (< 60 bp), and human reads. Taxonomic profiles were constructed using MetaPhlAn2 [32]. The number of reads mapped to each taxonomic feature was then normalized to the reads per kilobase per million (RPKM) sample reads to correct for bias due to differences in genome size and sequencing depth. The aggregated taxonomic profiles of all 585 samples revealed 128 genera.
In order to evaluate the suitability of using NB to model genera read counts before applying MetaLonDA, we conducted an analysis similar to the one shown in Table 1. We found that NB can be considered a good fit for 79% of the 128 genera (Additional file 4 shows a detailed comparison between different parametric distributions).

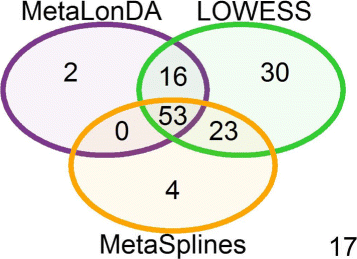

We applied MetaLonDA, LOWESS, and MetaSplines to identify the time intervals of the differentially abundant genera. We set the number of permutations for all three methods to 1000, pvalue threshold =0.05, multiple testing correction method to BH, and other parameters to default. MetaLonDA identified 71 genera that have at least one time interval with differentially abundant genera, LOWESS identified 122 genera, and MetaSplines identified 80 genera. Although there are 53 mutually inclusive common genera identified by the three methods as shown in Fig. 5, this does not necessarily indicate that they share the same identified time intervals as demonstrated in Fig. 6. LOWESS identified 30 genera that neither MetaSplines nor MetaLonDA reported. Whereas MetaLonDA identified 2 genera that were not reported by either LOWESS or MetaSplines. These results emphasize the high control of false positive identifications by MetaLonDA. The previously discussed simulation study concluded that LOWESS and MetaSplines have lower specificity compared to MetaLonDA. Thus, MetaLonDA discovery of few significant time intervals is directly related to its increased specificity compared to the other two methods.
Figure 6 visualizes differences between the time intervals identified by MetaLonDA, LOWESS, and MetaSplines correlating with the major shared genera. In most cases, the time intervals identified by MetaLonDA were also identified by either LOWESS, MetaSplines, or both. One critical observation that likely contributes the greater number of false positives observed in MetaSplines is that it sometimes identifies time intervals where samples from one group are missing. The absence of one group’s samples can make the spline fitting uncontrollable [16]. For example, MetaSplines identified Actinobacillus as relatively more abundant in the Russian infants from day 40 until day 65, although the first Russian sample was collected 96 days after birth. MetaLonDA handles this situation by only reporting significant intervals during the time period when samples from all study groups are available. In the case of the hygiene hypothesis study, individual genera’s time intervals identified by MetaLonDA are bounded in the range of 96 to 1105 days. Day 96 was the day on which the first sample from a Russian infant was collected, and day 1105 is when the last Russian sample was collected (the first sample from Finnish infants was on day 41, and the last was on day 1162). Since we implemented LOWESS on the same MetaLonDA framework, it also handles this edge problem. A list of all time intervals identified by MetaLonDA, LOWESS, and MetaSplines are shown in Additional file 5. Additional file 6 shows the time intervals of differentially abundant genera identified by MetaLonDA, LOWESS, and MetaSplines, while Additional file 7 shows time intervals identified by MetaLonDA only.
In our analysis, MetaLonDA confirms the report by Vatanen et al. demonstrating that the genus Bacteroides is relatively more abundant during early time points in the Finnish group, whereas the genus Bifidobacterium is relatively more abundant in the Russian group [3]. MetaLonDA specifies that Bacteroides were significantly abundant during days 96–584 in Finnish infants, and Bifidobacterium were relatively more abundant in Russian infants from day 96 to day 720. Furthermore, in their study, Vatanen et al. noted that early life exposure to specific structurally distinct bacterial lipopolysaccharides (LPS) influences the development of autoimmune disease. They suggest that in contrast to Russian infants, Finnish infants mount an insufficient immune response due to exposure to Bacteroides LPS rather than Escherichia coli LPS. Utilization of MetaLonDA in this cohort demonstrates that Escherichia establishes a significant community in Russian infants from day 550 to 946 with little variability. MetaLonDA also defined specific time intervals during which other bacterial genera (e.g., Lactobacillus, Leptotrichia, Klebsiella) previously associated as protective or instigating of type 1 diabetes (T1D) were differentially abundant [33, 34]. Moreover, MetaLonDA established that up until day 629, Finnish infants present an additional shift in Proteobacteria with an overabundance of genera that are known to be implicated in human disease, including Campylobacter, Haemophilus, Klebsiella, and Neisseria. In parallel, when evaluating genera that have previously been associated with protection against T1D, MetaLonDA reveals a divergence from Lactobacillus and Lactococcus to Veillonella as the dominant Firmicutes genera observed early in the life of Finnish infants. These findings suggest that there is a complex interplay of multiple bacterial genera early in life which may all have immunogenic potential and will allow, in this case, further exploration of the role of bacteriaspecific LPS as well as other microbial specific stimulators or inhibitors of the host immune response and their role in development of autoimmune disease.
Conclusion
We have developed MetaLonDA as an R package that can identify significant time intervals of differentially abundant microbial features such as taxonomies, genes, or pathways. MetaLonDA is flexible such that it can perform differential abundance tests on longitudinal samples with different numbers of subjects per phenotypic group, different numbers of samples per subject, and samples that are not collected at consistent time points. These inconsistencies are often the case for samples collected from human subjects. Inconsistencies increase with the complexity of the procedure utilized to obtain the samples. Usually, there is less inconsistency in samples collected through noninvasive procedures such as stool and urine samples but increases in the case of invasive procedures such as BAL. MetaLonDA relies on two modeling components: the NB distribution for modeling the mapped read counts for each feature and the semiparametric SSANOVA technique for modeling longitudinal profiles associated with different phenotypes.
Extensive experiments on simulated datasets quantitatively demonstrate the effectiveness of MetaLonDA with significant improvement over alternative methods. The time needed to execute MetaLonDA depends on the number of features being tested and the number of permutations for generating AR empirical distributions. MetaLonDA performs significance testing based on unit time intervals that can be hours, days, weeks, months, or years. The identified time intervals of differentially abundant features can be used as preselected features for a machine learning classifier to predict disease prognosis [35–37]. MetaLonDA can be applied to any longitudinal count data such as metagenomic sequencing, 16S rRNA gene sequencing, or RNASeq. It is worth noting that the NB assumption made for taxonomy would need to be reassessed before MetaLonDA can be confidently applied to functional data. In the future, we plan to implement a checker function that evaluates the distributional assumption based on KS test, and accordingly, the best fitted model can be utilized for the longitudinal differential abundance test.
Furthermore, MetaLonDA allows for an indepth exploration of potential features and establishment of precise time intervals during which individual features may serve as biomarkers from populationbased longitudinal studies such as the DIABIMMUNE cohort discussed in this paper. Specific significant time intervals can then be utilized to establish targeted timely screening or prevention of individual features and allow for prompt intervention, such as the use of antibiotics or probiotics. Unlike with crosssectional methods that are incapable of identifying significant time intervals associated with differentially abundant features, MetaLonDA may lead to reconstitution of the microbiome and reestablish homeostasis prior to entering the cascade of events that may lead to overt disease.
Although MetaLonDA addresses one of the most common limitations in human sample collection inconsistencies, there is still room for improvement. The current version of MetaLonDA only finds the association between microbial features, time, and phenotypic group. In the future, we plan to incorporate additional confounding factors (age, gender, race, disease severity, etc.) to the MetaLonDA model. Another limitation of MetaLonDA is that when samples are sparse over extended time intervals, the fitted smoothing spline has large variation [16]. This causes the identified significant time intervals to be unreliable and should be excluded from the analysis. Thus, identification of these extended intervals based on a statistical method merits further investigation.
MetaLonDA is publicly available on the CRAN repository (https://CRAN.Rproject.org/package=MetaLonDA).
Availability and requirements
Project name: MetaLonDA
Project home page: https://CRAN.Rproject.org/package=MetaLonDA
Sourcecode available at: https://github.com/aametwally/MetaLonDA
Operating system(s): Platform independent
Programming language: R (≥ 3.2.0)
License: MIT
Abbreviations
 BAL:

Bronchoalveolar lavage
 BH:

BenjaminiHochberg
 KS test:

KolmogorovSmirnov test
 LPS:

Lipopolysaccharides
 MetaLonDA:

Metagenomic longitudinal differential abundant
 MGS:

Metagenomic shotgun
 NB:

Negative binomial
 OTU:

Operational taxonomic unit
 SSANOVA:

Smoothing spline ANOVA
 T1D:

Type 1 diabetes
 ZIP:

Zeroinflated poisson
References
 1
Caporaso JG, Lauber CL, Costello EK, BergLyons D, Gonzalez A, Stombaugh J, Knights D, Gajer P, Ravel J, Fierer N, Gordon JI, Knight R. Moving pictures of the human microbiome. Genome Biol. 2011; 12(5):50.
 2
Kostic AD, Gevers D, Siljander H, Vatanen T, Hyötyläinen T, Hämäläinen AM, Peet A, Tillmann V, Pöhö P, Mattila I, Lähdesmäki H, Franzosa EA, Vaarala O, de Goffau M, Harmsen H, Ilonen J, Virtanen SM, Clish CB, Orešič M, Huttenhower C, Knip M, DIABIMMUNE Study Group RJ, Xavier RJ. The dynamics of the human infant gut microbiome in development and in progression toward type 1 diabetes. Cell Host Microbe. 2015; 17(2):260–73.
 3
Vatanen T, Kostic AD, d’Hennezel E, Siljander H, Franzosa EA, Yassour M, Kolde R, Vlamakis H, Arthur TD, Hämäläinen AM, Peet A, Tillmann V, Uibo R, Mokurov S, Dorshakova N, Ilonen J, Virtanen SM, Szabo SJ, Porter JA, Lähdesmäki H, Huttenhower C, Gevers D, Cullen TW, Knip M, Xavier RJ. Variation in microbiome LPS immunogenicity contributes to autoimmunity in humans. Cell. 2016; 165(4):842–53.
 4
Turnbaugh PJ, Hamady M, Yatsunenko T, Cantarel BL, Duncan A, Ley RE, Sogin ML, Jones WJ, Roe BA, Affourtit JP, Egholm M, Henrissat B, Heath AC, Knight R, Gordon JI. A core gut microbiome in obese and lean twins. Nature. 2009; 457(7228):480–4.
 5
Koenig JE, Spor A, Scalfone N, Fricker AD, Stombaugh J, Knight R, Angenent LT, Ley RE. Succession of microbial consortia in the developing infant gut microbiome. Proc Natl Acad Sci U S A. 2011; 108 Suppl 1(Supplement 1):4578–85.
 6
Morris A, Paulson JN, Talukder H, Tipton L, Kling H, Cui L, Fitch A, Pop M, Norris KA, Ghedin E. Longitudinal analysis of the lung microbiota of cynomolgous macaques during longterm SHIV infection. Microbiome. 2016; 4(1):38.
 7
Ridenhour BJ, Brooker SL, Williams JE, Van Leuven JT, Miller AW, Dearing MD, Remien CH. Modeling timeseries data from microbial communities. ISME J. 2017; 11(11):2526.
 8
Bucci V, Tzen B, Li N, Simmons M, Tanoue T, Bogart E, Deng L, Yeliseyev V, Delaney ML, Liu Q, Olle B, Stein RR, Honda K, Bry L, Gerber GK. MDSINE: Microbial Dynamical Systems INference Engine for microbiome timeseries analyses. Genome Biol. 2016; 17(1):121.
 9
Shannon CE, Weaver W. The mathematical theory of communication. Urbana: The University of Illinois Press; 1949, pp. 19–27, 82–83, 104–107.
 10
Hamady M, Lozupone C, Knight R. Fast UniFrac: facilitating highthroughput phylogenetic analyses of microbial communities including analysis of pyrosequencing and PhyloChip data. ISME J. 2010; 4(1):17–27.
 11
Bray JR, Curtis JT. An ordination of the upland forest communities of Southern Wisconsin. Ecol Monogr. 1957; 27(4):325–49.
 12
Paulson JN, Stine OC, Bravo HC, Pop M. Differential abundance analysis for microbial markergene surveys. Nat Methods. 2013; 10(12):1200–1202.
 13
Luo D, Ziebell S, An L. An informative approach on differential abundance analysis for timecourse metagenomic sequencing data. Bioinformatics. 2017; 334:828.
 14
Gu C. Smoothing spline ANOVA models: R package gss. J Stat Softw. 2014; 58(5):1–25.
 15
Wahba G, Wang Y, Gu C, Klein R, Klein B. Smoothing spline ANOVA for exponential families, with application to the Wisconsin Epidemiological Study of Diabetic Retinopathy : the 1994 Neyman Memorial Lecture. Ann Stat. 1995; 23(6):1865–95.
 16
Gu C. Smoothing spline ANOVA models. New York: Springer Science & Business Media; 2013.
 17
Caporaso JG, Kuczynski J, Stombaugh J, Bittinger K, Bushman FD, Costello EK, Fierer N, Peña AG, Goodrich JK, Gordon JI, Huttley GA, Kelley ST, Knights D, Koenig JE, Ley RE, Lozupone CA, McDonald D, Muegge BD, Pirrung M, Reeder J, Sevinsky JR, Turnbaugh PJ, Walters WA, Widmann J, Yatsunenko T, Zaneveld J, Knight R. QIIME allows analysis of highthroughput community sequencing data. Nat Methods. 2010; 7(5):335–6.
 18
Metwally AA, Dai Y, Finn PW, Perkins DL. WEVOTE: weighted voting taxonomic identification method of microbial sequences. PLOS ONE. 2016; 11(9):0163527.
 19
Kim D, Song L, Breitwieser FP, Salzberg SL. Centrifuge: rapid and sensitive classification of metagenomic sequences. Genome Res. 2016; 26(12):1721–9.
 20
Abubucker S, Segata N, Goll J, Schubert AM, Izard J, Cantarel BL, RodriguezMueller B, Zucker J, Thiagarajan M, Henrissat B, White O, Kelley ST, Methé B, Schloss PD, Gevers D, Mitreva M, Huttenhower C. Metabolic reconstruction for metagenomic data and its application to the human microbiome. PLoS Comput Biol. 2012; 8(6):1002358.
 21
Brooks JP, Edwards DJ, Harwich MD, Rivera MC, Fettweis JM, Serrano MG, Reris RA, Sheth NU, Huang B, Girerd P, Strauss JF, Jefferson KK, Buck GA. The truth about metagenomics: quantifying and counteracting bias in 16S rRNA studies. BMC Microbiol. 2015; 15(1):66.
 22
Weiss S, Xu ZZ, Peddada S, Amir A, Bittinger K, Gonzalez A, Lozupone C, Zaneveld JR, VázquezBaeza Y, Birmingham A, Hyde ER, Knight R. Normalization and microbial differential abundance strategies depend upon data characteristics. Microbiome. 2017; 5(1):27.
 23
Love MI, Huber W, Anders S. Moderated estimation of fold change and dispersion for RNAseq data with DESeq2. Genome Biol. 2014; 15(12):550.
 24
Robinson MD, McCarthy DJ, Smyth GK, Zhang L, Cui X, Benson AK, Yi N, Adeola O, Nakatsu C, Ajuwon K. edgeR: a Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics. 2010; 26(1):139–40.
 25
Metwally AA, Finn PW, Dai Y, Perkins DL. Detection of differential abundance intervals in longitudinal metagenomic data using negative binomial smoothing spline ANOVA. In: Proceedings of the 8th ACM International Conference on Bioinformatics, Computational Biology,and Health Informatics — ACMBCB ’17. Boston: ACM Press: 2017. p. 295–304.
 26
Benjamini Y, Hochberg Y. Controlling the false discovery rate: a practical and powerful approach to multiple testing on JSTOR. J R Stat Soc. 1995; 57(1):289–300.
 27
Chakravarti IM, Laha RG, Roy JD. Handbook of methods of applied statistics. Hoboken: Wiley; 1967.
 28
Jonsson V, Österlund T, Nerman O, Kristiansson E. Statistical evaluation of methods for identification of differentially abundant genes in comparative metagenomics. BMC Genomics. 2016; 17(1):78.
 29
Erhardt V. corcounts. 2015. https://cran.rproject.org/web/packages/corcounts/corcounts.pdf. 15 Aug 2017.
 30
Chatfield C. The analysis of time series: an introduction. Boca Raton: CRC press; 2016.
 31
Cleveland WS. Robust locally weighted regression and smoothing scatterplots. J Am Stat Assoc. 1979; 74(368):829–36.
 32
Truong DT, Franzosa EA, Tickle TL, Scholz M, Weingart G, Pasolli E, Tett A, Huttenhower C, Segata N. MetaPhlAn2 for enhanced metagenomic taxonomic profiling. Nat Methods. 2015; 12(10):902–3.
 33
Haileselassie Y, Navis M, Vu N, Qazi KR, Rethi B, SverremarkEkström E. Lactobacillus reuteri and Staphylococcus aureus differentially influence the generation of monocytederived dendritic cells and subsequent autologous T cell responses. Immun Inflamm Dis. 2016; 4(3):315–26.
 34
Tai N, Peng J, Liu F, Gulden E, Hu Y, Zhang X, Chen L, Wong FS, Wen L. Microbial antigen mimics activate diabetogenic CD8 T cells in NOD mice. J Exp Med. 2016; 213(10):2129–46.
 35
Knights D, Costello EK, Knight R. Supervised classification of human microbiota. FEMS Microbiol Rev. 2011; 35(2):343–59.
 36
Reiman D, Metwally A, Dai Y. Using convolutional neural networks to explore the microbiome. In: 2017 39th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC). Jeju Island: IEEE: 2017. p. 4269–272.
 37
Ditzler G, Polikar R, Rosen G. Multilayer and recursive neural networks for metagenomic classification. IEEE Trans Nanobioscience. 2015; 14(6):608–16.
Acknowledgements
We want to thank Kathryn Dominguez and Jennifer Kwan from FinnPerkins laboratory at UIC for editing the manuscript. We also would like to thank Galeb AbuAli from the Huttenhower Laboratory at Harvard University for suggesting the use of the DIABIMMUNE cohort to assess the biological significance of the features and time intervals identified by MetaLonDA.
Funding
This work is supported by a UIC Chancellor’s Graduate Research Fellowship awarded to AAM, UIC CCTS Predoctoral Education for Clinical and Translational Scientists fellowship (UL1TR002003) awarded to AAM, and US National Institutes of Health under grants R01HL138628 and U01AI132898 awarded to PWF and DLP.
Author information
Affiliations
Contributions
AAM, YD, and JY developed the method. AAM designed and wrote the MetaLonDA software package. CA, PWF, and DLP provided the biological and clinical significance. YD, PWF, and DLP supervised the project. AAM, YD, PWF, and DLP wrote the original draft. All authors read and approved the final manuscript.
Corresponding authors
Correspondence to Yang Dai or Patricia W. Finn or David L. Perkins.
Ethics declarations
Ethics approval and consent to participate
Not applicable.
Consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Additional files
Additional file 1
The mathematical derivation of MetaLonDA algorithm. (PDF 214 kb)
Additional file 2
Zeroinflation probability distribution of the fitted ZIP distribution. Read counts are taken from the Caporaso et al., study. (PDF 3369 kb)
Additional file 3
Time point distribution per subject in the DIABIMMUNE study. (PDF 6472 kb)
Additional file 4
Evaluation of suitability of using different parametric distribution to model genera read counts from the DIABIMMUNE study. (PDF 476 kb)
Additional file 5
Table of all details of the identified time intervals by MetaLonDA, LOWESS, and MetaSplines in the hygiene hypothesis study. (CSV 21 kb)
Additional file 6
The identified time intervals of the shared differentially abundant genera by MetaLonDA, LOWESS, and MetaSplines between Finnish and Russian infants. (PDF 869 kb)
Additional file 7
The identified time intervals of the differentially abundant genera by MetaLonDA between Finnish and Russian infants. (PDF 804 kb)
