Fig. 7 | Microbiome

Fig. 7

From: Spatial heterogeneity of bacterial colonization across different gut segments following inter-species microbiota transplantation

Fig. 7

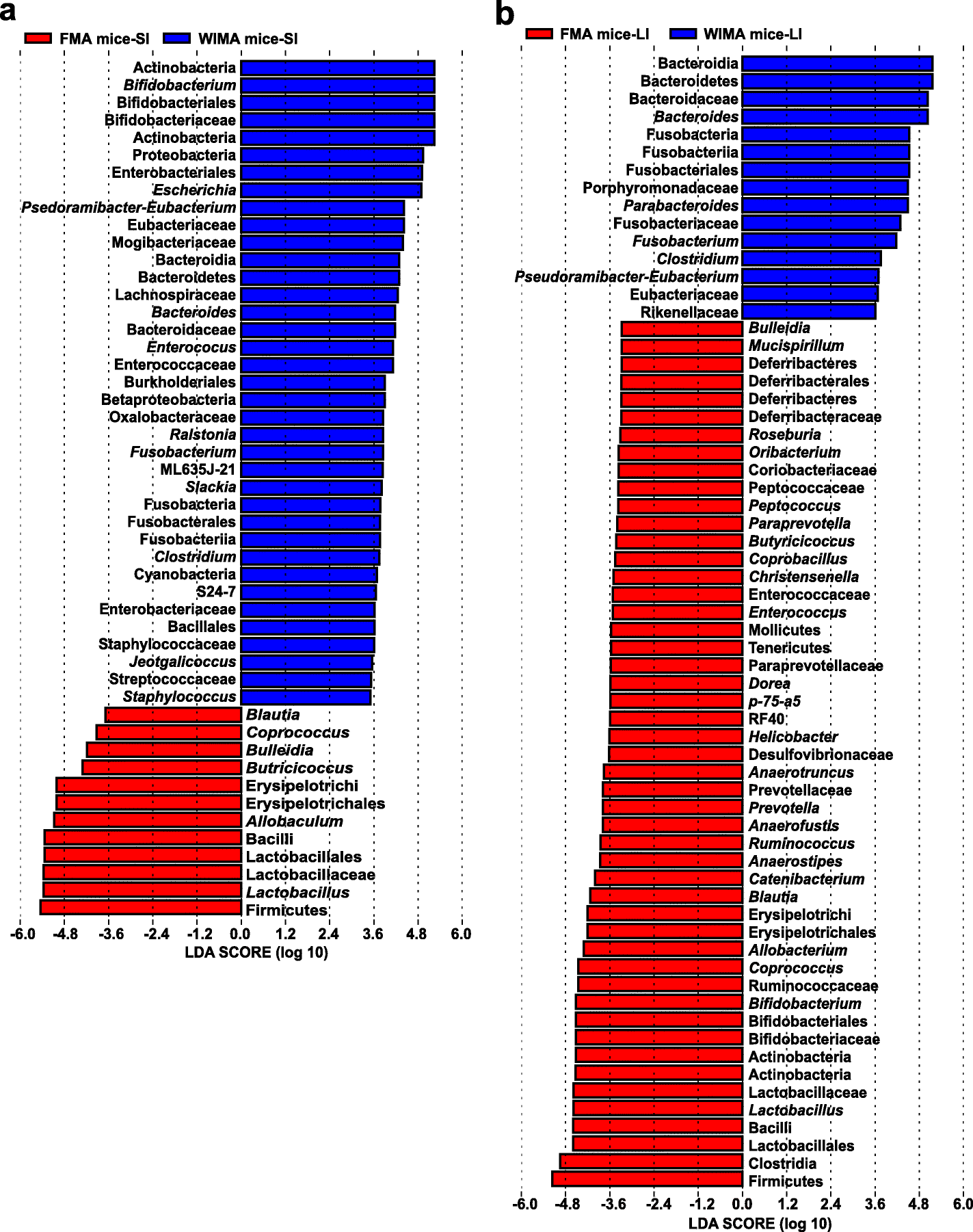

Differentially abundant taxa between FMA and WIMA mice. Histograms of a linear discriminant analysis (LDA) score (threshold ≥ 2) in small-intestinal samples (a) and large-intestinal samples (b) are plotted. Jejunal and ileal samples of recipients were pooled into small-intestinal samples. Cecal, colonic, and fecal samples of recipients were pooled into large-intestinal samples. FMA mice: fecal microbiota-associated mice; WIMA mice: whole-intestinal microbiota-associated mice; SI: small intestine; LI: large intestine
